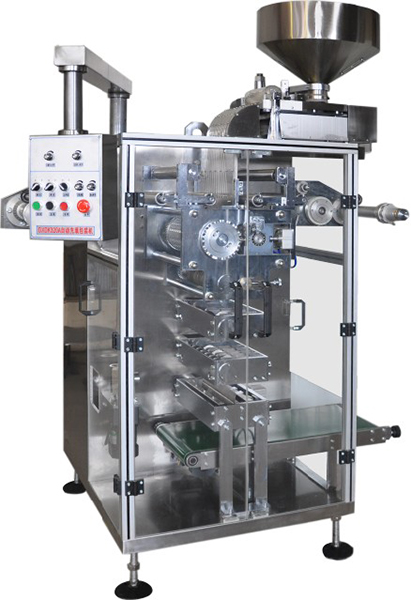

DXDK320A四边封条袋包装机

DXDK320A FOUR-EDGJES SEALING AND LARGE NUMBER OF BAG OF PACKING MACHINE

特点

Features

四边封条，同时进行多条袋包装，包装效率高。

PLC控制，自动化程度高。

无级变频调速，性能可靠，操作放便。

光电跟踪、浮动对标、保证条袋包装双面图案完整，位置准确。

自动打批号、压撕裂线。

适用范围

医药、食品、化妆品等行业对胶囊、片剂物料的包装。

Sealing four edges of bag,simultaneously packing many bands of

bags, hav-ing high packing speed.

Controlled by PLC, having high automatization.

The stepless frequency conversion variable speeds, having reiable

perfor-mances,easy operation.

It is equiped with photoelectric tracking device and floating alignment

mark to ensure a complete paattern and precise on both faces of the

package of the band bags.

Automatically printing serial numbers and presjsing longituidinal and

transverse breaking lines.

Application

Applicable for packing capsules, tablets, sticky and semi-sticky materials in pharmaceutical, food processing and cosmetic industries.

技术参数

Specifications

冲裁次数 Cutting frequency	≤30次／分 (times/min)
包装效率 Packing speed (pills/min)	400～1200粒／分 (pills/min)
包装材料 Packing material	塑铝塑复合膜 Compound film made of plastic andaluminium and plastic
包装剂量 Packing dose	片剂、胶囊、多片（粒） tablets capsules: many pieces (pills)
电源总功率 Installed power	6kW
电压 Voltage	380V/50Hz
外形尺寸（长×宽×高） Size L×W×H(mm)	1500 x1070×2100
重量（公斤） Weight( kg)	1200
